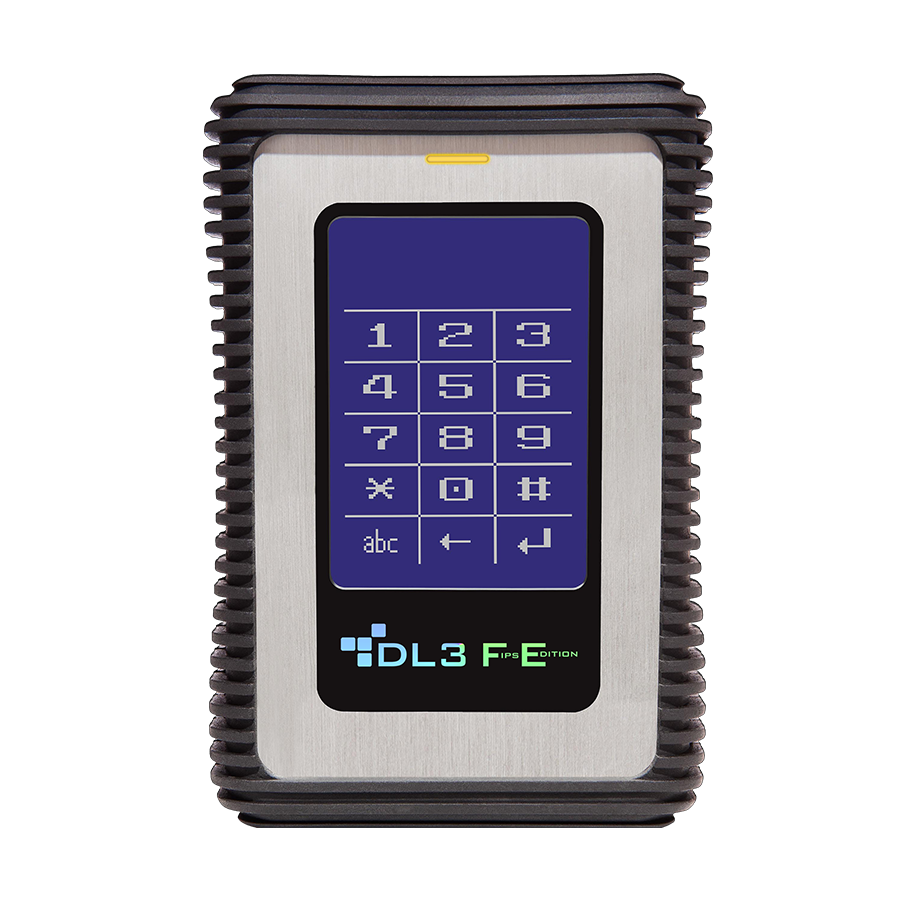

DataLocker DL3 FE (FIPS Edition)

The DL3 FE (FIPS Edition) sets a new standard for encrypted portable storage.  It is the first and only encrypted external hard drive to feature dual crypto processors. Your data undergoes two passes of 256 bit encryption, using two different independently generated random keys for unsurpassed security.


Clear selection

The DL3 sets a new standard for encrypted portable storage.  It truly is security that is simply secure.  No software is ever needed to manage, encrypt or deploy the DL3.  Simply connect, authenticate with your personal passcode, and go.

Key Features

  • Absolutely no software or drivers
  • Supports alpha and numeric based passwords, plus the # and * characters
  • Optional RFID based 2-factor authentication
  • 2-pass encryption: first pass is 256 bit AES XTS mode; second pass is FIPS 140-2 validated 256-bit AES CBC mode.
  • Self destruct security mode (mitigate brute force hacking)
  • Keypad randomization (mitigate surface analysis)
  • Super-speed USB 3.0 interface (compatible with USB 2.0)
  • Rapid secure wipe (rapid key zeroization)
  • Supports an administrator password (full permissions) and a user password (limited permissions)
  • Removable silicone protective guard
  • NEW FEATURE – Read Only Mode – Allows the device administrator to lock the drive as “Read Only”, users can only view the contents but can not change or erase it.
  • NEW FEATURE – Auto-Lock – Allows the device administrator to set a timer which disconnects the drive after a set period of inactivity.

Trusted By

  • Banks
  • Hospitals
  • Government Agencies
  • Military
  • Law Firms
  • Fortune 500 Companies
  • Educational Institutions
DataLocker DL3 FE
Capacity 500GB, 1TB, 2TB, 512GB SSD, 960GB SSD, 4TB SSD
Cryptographic Processes 256 Bit AES XTS and CBC mode encryption, FIPS 197 (Cert. #250)
FIPS 140-2 Validated Crypto Chip (Cert. #1472)
Dimensions (L x W x D) 120mm x 80mm x 23mm
Weight Approx. 9 oz.
Interface USB 3.0 (2.0 compatible)
Standards & Certifications TAA Compliant, RoHs Compliant, FCC, CE, WEE, KCC
COO Korea (Republic of)
Waterproof SSD tolerates humidity
System Compatibility Windows, Mac, Linux, absolutely no software or drivers,
Languages English, French, German and Spanish.
Warranty 2 year (extended to 3 years available)
Management System SafeConsole
Authentication Strong password via Alpha Numeric Keypad, Optional RFID

DataLocker DL3 FE Data Sheet
DataLocker DL3 FE User Manual
DataLocker DL3 FE Quick Start Guide
DL3 FE with RFID Quick Start Guide
DL3 SafeConsole Setup Guide<




How to Set Up 2-Factor RFID Authorization

Set Up VCD on DL3

How to Initialize and Format on Windows 7

How to Initialize and Format on Mac
